Understanding Cooling Towers: The Role of Steel in Industrial Cooling Systems

I. Introduction

Industrial cooling towers are vital components in many sectors, providing efficient heat rejection for processes that generate large amounts of thermal energy. By transferring heat from water or process fluids into the surrounding air, these systems maintain operational stability, prevent overheating, and enhance energy efficiency.

A cooling tower can be defined as a specialized heat exchanger that removes heat from circulating water through evaporation and convection. Warm water from industrial processes is sprayed or distributed over fill media inside the tower, where airflow—either natural or mechanically assisted—promotes the evaporation of a portion of the water. This phase change absorbs heat, cooling the remaining water, which is then recirculated back into the system.

The relevance of cooling towers spans multiple industries. In power generation, they prevent condensers and turbines from overheating. HVAC systems in large commercial buildings rely on cooling towers to maintain comfortable temperatures efficiently. In chemical and petrochemical facilities, they control temperatures for exothermic reactions, while in metal processing plants, they manage heat generated during melting, forging, or casting processes. The ability to handle large heat loads reliably makes cooling towers indispensable in modern industrial operations.

Steel plays a crucial role in the construction of many of these towers, providing structural integrity, durability, and long-term performance under demanding industrial conditions. This article focuses on steel cooling towers, exploring their design, applications, and performance characteristics.

II. Types of Cooling Towers

Cooling towers are classified in several ways, depending on airflow generation, water and air flow direction, and construction materials. Understanding these classifications helps engineers and facility managers select the right type for their specific industrial requirements.

Classification by Airflow Generation

Natural Draft Cooling Towers: These towers rely on the natural buoyancy of heated air to induce airflow through the system. Warm, moist air rises due to density differences, drawing cooler air from the bottom of the tower. Natural draft towers are typically large, often seen in power plants, and are designed to handle high heat loads without the use of mechanical fans.

Mechanical Draft Cooling Towers: These rely on fans to move air through the tower. Mechanical draft towers are further divided into:

Induced Draft:Fans are positioned at the top of the tower, pulling air upward through the system. This design provides better control over airflow and is highly efficient for large-scale industrial cooling.

Forced Draft:Fans are located at the air intake, pushing air into the tower. Forced draft towers are often used when space is limited or when specific airflow patterns are required.

Classification by Water and Air Flow Direction

Counterflow Cooling Towers:In counterflow designs, water flows downward while air moves upward through the fill media, opposite to the water flow. This arrangement allows for high thermal efficiency, as the coldest air contacts the coolest water at the bottom of the tower.

Crossflow Cooling Towers:Air flows horizontally across the descending water. Crossflow towers provide easier access to internal components for maintenance and are widely used in commercial and industrial applications.

Classification by Construction Material

Concrete Cooling Towers:These are commonly used for large-scale power plants due to their structural strength and long life.

Fiberglass-Reinforced Plastic (FRP) Towers:FRP is lightweight, corrosion-resistant, and suitable for smaller industrial or commercial applications.

Steel Cooling Towers:Steel is the focus of this discussion. Steel towers combine structural strength with versatility, enabling the construction of towers capable of handling heavy industrial loads while providing a durable framework for heat exchange media and fans.

Steel cooling towers offer a balance of mechanical strength, adaptability, and longevity, making them ideal for industries such as steel production, petrochemical processing, and large-scale HVAC systems. They are particularly valued when reliability and high performance are essential in demanding industrial environments.

III. Steel Cooling Towers: Design and Construction

Steel cooling towers are widely used in industrial applications due to their strength, durability, and adaptability to high-capacity operations. Choosing steel as the primary construction material provides both structural integrity and long-term performance, especially in demanding environments where heat, moisture, and chemical exposure are significant concerns.

Advantages and Limitations of Steel
Steel offers several advantages over other materials: it can support larger structures with thinner walls, allows for faster assembly, and provides excellent resistance to mechanical stress. Steel towers are often lighter than concrete equivalents, reducing foundation requirements and installation time. Additionally, steel allows for modular and prefabricated designs, which simplify transportation and onsite assembly.

However, steel is susceptible to corrosion if not properly protected. High humidity, chemical exposure, and continuous water contact can lead to rusting, pitting, or coating degradation over time. Therefore, effective corrosion protection strategies are critical to maintaining long-term reliability.

Common Steel Types Used

Galvanized Steel:Widely used due to its cost-effectiveness and basic corrosion protection through zinc coating.

Stainless Steel:Grades such as 304, 316, and duplex stainless steels provide superior corrosion resistance, particularly in chemically aggressive or saline environments.

Carbon Steel with Protective Coatings:Carbon steel can be employed when combined with epoxy, polyurethane, or other protective coatings to resist corrosion and extend service life.

Structural Components of Steel Cooling Towers
Steel cooling towers are composed of several key elements that ensure efficient heat transfer and system stability:

Basin:Collects cooled water for recirculation.

Casing:Provides structural support and houses internal components.

Drift Eliminators:Reduce water loss through droplets carried by the airflow.

Fill Media Support:Holds heat exchange media in place, maximizing water and air contact.

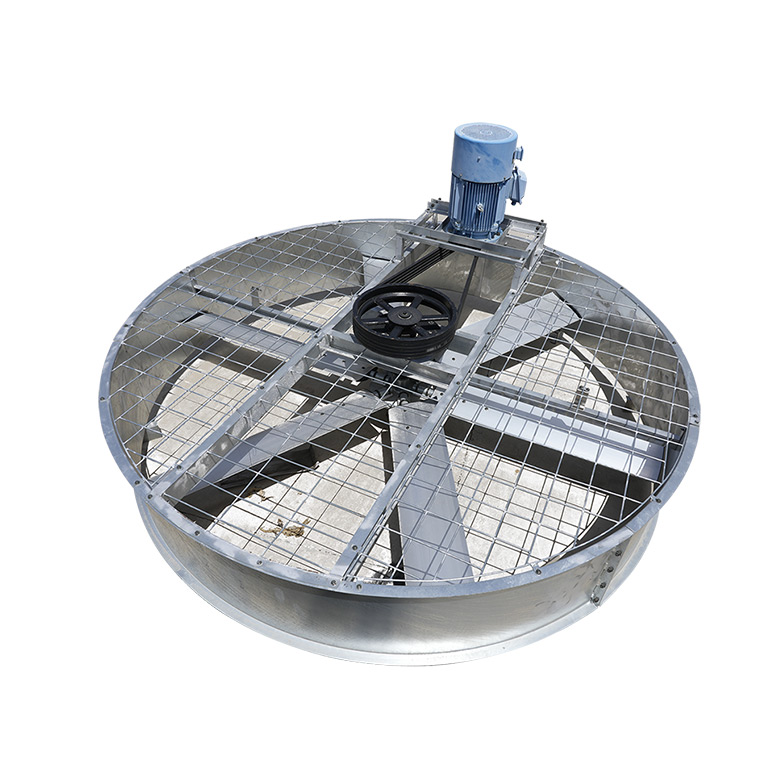

Fan Deck:Supports fans that drive airflow through the tower.

Corrosion Protection Strategies
To maintain longevity, steel cooling towers incorporate several corrosion prevention measures:

Hot-Dip Galvanizing:Coating steel components in zinc protects against oxidation and extends structural life.

Epoxy/Polyurethane Coatings:Applied to both internal and external surfaces to prevent direct water and chemical contact.

Cathodic Protection:In specific industrial applications, electrochemical systems are used to inhibit corrosion on steel surfaces exposed to highly corrosive water.

Fangnuo Heat Transfer System (Jiangsu) Co., Ltd. applies these design principles meticulously, combining material selection, protective coatings, and structural optimization to deliver steel cooling towers capable of reliable operation in industries such as steel production, power generation, and chemical processing. Their engineering teams ensure that each tower is configured for both thermal efficiency and long-term durability, addressing the unique challenges of industrial cooling systems.

IV. Industrial Applications of Steel Cooling Towers

Steel cooling towers are widely used across industries where large-scale heat rejection and durability are essential. Their robust construction, adaptability, and ability to withstand high temperatures and chemical exposure make them a preferred choice for demanding industrial environments.

Power Generation
In thermal, nuclear, and combined-cycle power plants, steel cooling towers are critical for condenser water cooling. They handle high flow rates and significant heat loads, maintaining optimal turbine and generator performance. Steel’s structural strength allows for large towers capable of supporting heavy fill media, fans, and ancillary equipment, while corrosion protection ensures longevity despite continuous exposure to warm water and humid air.

Oil & Gas Refineries and Petrochemical Facilities
Refineries and petrochemical plants require reliable cooling for heat exchangers, reactors, and condensers. Steel cooling towersprovide the necessary robustness to manage harsh chemical environments and elevated water temperatures. They also accommodate modular designs, enabling easy expansion as production capacity grows.

Steel Mills and Metal Processing Plants
Industries involved in metal casting, forging, or rolling generate enormous amounts of process heat. Steel cooling towers are ideal for steel mills and metal processing facilities, where high thermal loads and exposure to aggressive water chemistries are common. The towers’ structural durability and corrosion resistance ensure continuous operation without frequent shutdowns for maintenance.

Large-Scale HVAC Systems
Commercial and industrial buildings with extensive HVAC requirements benefit from steel cooling towers, which efficiently manage chilled water loops for air conditioning systems. Steel’s adaptability allows towers to be sized precisely to building needs while providing reliable cooling year-round.

Food and Beverage Processing
Industries such as beverage production, dairy, and food processing rely on precise temperature control for quality and safety. Steel cooling towers offer efficient and sanitary cooling solutions, capable of handling varying loads while complying with regulatory standards for water treatment and hygiene.

Typical Capacity Ranges
Steel cooling towers can be designed for a wide range of capacities, from small units handling 500 GPMto massive installations exceeding 50,000 GPM, making them suitable for virtually any industrial or commercial application.

Fangnuo Heat Transfer System (Jiangsu) Co., Ltd. has extensive experience designing and supplying steel cooling towers for these industries. By combining engineering expertise with tailored material selection and system design, Fangnuo ensures that each tower delivers high performance, durability, and energy efficiency. Their solutions are trusted by major enterprises in sectors ranging from steel production and power generation to chemical processing and HVAC, reflecting the versatility and reliability of steel-based industrial cooling systems.

V. Performance Considerations

The performance of a steel cooling tower directly affects the efficiency of an industrial cooling system. Several factors—including thermal efficiency, water quality, energy consumption, and environmental compliance—must be carefully considered to ensure reliable operation and long-term cost-effectiveness.

Thermal Efficiency
Thermal performance is typically evaluated using the approachand rangeof the cooling tower:

Approach:The difference between the cooled water temperature leaving the tower and the ambient wet-bulb temperature.

Range:The temperature difference between the hot water entering the tower and the cooled water leaving it.

A well-designed industrial cooling tower achieves minimal approach values while handling the required heat load. Fangnuo’s steel cooling towers optimize heat transfer by ensuring uniform water distribution over the fill media and maximizing airflow with high-efficiency fans. This combination enhances evaporation, reduces water temperature effectively, and maintains consistent system performance.

Water Treatment Requirements
Water quality significantly influences cooling tower efficiency and longevity. Untreated water can lead to scaling, biological growth, and corrosion, which reduce heat transfer and compromise structural integrity. Key water treatment measures include:

Scaling Control:Preventing mineral deposits on fill media and heat exchangers.

Biological Control:Minimizing algae, bacteria, and slime growth.

Corrosion Control:Protecting steel components from rust and pitting through chemical inhibitors or coatings.

Fangnuo integrates system design with recommended water treatment practices, ensuring that steel cooling towers operate efficiently in diverse industrial environments.

Energy Consumption
Energy use in a cooling tower is primarily associated with fan and pump operations. Factors that impact consumption include fan type, airflow volume, water circulation rate, and system design. High-efficiency fans, optimized for the tower’s specific application, reduce energy requirements while maintaining adequate airflow for cooling. Fangnuo emphasizes fan and pump selection that balances cooling performance with minimized operational costs.

Environmental Considerations
Modern industrial operations must comply with regulations regarding water usage, drift emissions, and noise. Steel cooling towers can be equipped with:

Drift Eliminators:Minimize water droplet loss into the atmosphere.

Noise Reduction Features:Fan blade optimization and acoustic treatments reduce operational sound levels.

Water Conservation Systems:Recirculation and treatment minimize freshwater consumption.

By integrating these measures, Fangnuo’s steel cooling towers meet regulatory standards while supporting sustainable industrial practices.

Proper attention to these performance factors ensures that industrial cooling towers achieve maximum efficiency, durability, and reliability. Steel construction, combined with precise design and operational strategies, makes these towers particularly effective in heavy-duty applications such as steel mills, power plants, and chemical facilities.

VI. Maintenance and Longevity

Maintaining a steel cooling tower is essential to preserve performance, extend service life, and prevent unexpected downtime in industrial operations. Proper inspection, routine maintenance, and timely repairs ensure that cooling towers continue to operate efficiently under demanding conditions.

Routine Inspection Checklist
Regular inspections help identify issues before they escalate. Key areas to monitor include:

Structural Components:Check for rust, corrosion, or deformation in the steel casing, basin, and support structures.

Fill Media:Inspect for clogging, scaling, or wear that can reduce heat transfer efficiency.

Fans and Motors:Examine bearings, blades, and drive systems for wear, vibration, or imbalance.

Water Distribution System:Ensure nozzles and spray systems are clean and delivering uniform coverage.

Drift Eliminators:Confirm they are intact and free from obstructions to prevent water loss.

Common Failure Modes in Steel Cooling Towers
Even with high-quality construction, steel cooling towers can experience specific issues over time:

Rust and Corrosion:Occurs when protective coatings degrade or water treatment is insufficient.

Pitting and Coating Degradation:Localized corrosion can weaken structural components if left unchecked.

Mechanical Wear:Fans, motors, and pumps experience operational stress, leading to potential failure if not monitored.

Maintenance Best Practices
To maximize longevity and efficiency, follow these maintenance strategies:

Scheduled Cleaning:Periodically remove scale, sediment, and biological growth from basins, fill media, and piping.

Protective Coating Maintenance:Reapply epoxy, polyurethane, or galvanizing layers as needed to prevent corrosion.

Mechanical Servicing:Lubricate bearings, balance fan blades, and check motor alignment regularly.

Water Treatment:Maintain chemical dosing for scaling, corrosion, and biological control to protect steel surfaces and optimize heat transfer.

Expected Service Life
When properly maintained, steel cooling towers can operate efficiently for 20 years or more, depending on water quality, environmental conditions, and operational loads. Fangnuo Heat Transfer System (Jiangsu) Co., Ltd. emphasizes design, material selection, and maintenance support to ensure that its steel towers meet long-term performance expectations. Their service programs include inspection schedules, water treatment guidance, and component replacement strategies tailored to each industrial application.

By combining high-quality steel construction with proactive maintenance, industrial operators can rely on steel cooling towers to provide continuous, energy-efficient cooling for years, even under harsh operating conditions.

VII. Comparison with Other Materials

Selecting the right construction material for a cooling tower is critical to balancing performance, cost, and durability. Steel, concrete, and fiberglass-reinforced plastic (FRP) each offer unique advantages and limitations, and understanding these differences helps engineers choose the optimal solution for their industrial needs.

Steel vs. Concrete

Cost and Installation:Steel cooling towers are generally lighter and faster to install compared to massive concrete structures. Prefabricated steel components reduce on-site labor and foundation requirements.

Durability:Concrete towers offer exceptional resistance to chemical exposure and structural fatigue but are prone to cracking over time. Steel, when properly coated and maintained, provides comparable longevity with added flexibility in modular design.

Weight and Structural Requirements:Steel’s lighter weight reduces the load on foundations and allows taller or larger-capacity towers to be built more easily than concrete.

Steel vs. FRP (Fiberglass-Reinforced Plastic)

Corrosion Resistance:FRP naturally resists corrosion without additional coatings, making it suitable for chemically aggressive environments. Steel requires protective coatings or stainless alloys to achieve similar resistance.

Structural Strength:Steel excels in mechanical strength and can support heavy fans, motors, and large water volumes. FRP is lightweight but may require additional framing or reinforcement for high-capacity industrial applications.

Fire Resistance:Steel has inherent fire resistance, whereas FRP panels may require special fire-retardant treatments for industrial compliance.

Hybrid Designs
Some modern cooling towers combine materials to leverage the strengths of each:

Steel Frame with FRP Panels:Offers structural integrity and corrosion resistance while reducing overall weight.

Concrete Base with Steel Superstructure:Provides a solid foundation with flexible, maintainable upper structures.

Practical Implications for Industrial Applications
For heavy-duty industries such as steel production, power generation, and petrochemical processing, steel cooling towers often provide the best balance of strength, adaptability, and long-term reliability. They can handle large heat loads, resist mechanical stresses, and integrate easily with high-capacity fans, pumps, and monitoring systems. Fangnuo Heat Transfer System (Jiangsu) Co., Ltd. specializes in designing steel cooling towerstailored to these rigorous industrial demands, optimizing both material selection and structural design to meet client-specific requirements.

VIII. Trends and Innovations

The field of industrial cooling towers is evolving rapidly, driven by the need for energy efficiency, sustainability, and advanced monitoring. Steel cooling towers, in particular, are benefiting from new technologies and design approaches that enhance performance, reduce maintenance, and extend service life.

Modular and Prefabricated Steel Cooling Towers
Prefabrication allows steel components to be manufactured off-site under controlled conditions, improving quality and reducing construction time. Modular designs enable rapid installation and scalability, making it easier for industrial facilities to expand cooling capacity without extensive on-site construction. Fangnuo integrates modular concepts into its steel cooling towers, allowing customized solutions that fit space constraints and operational requirements.

Smart Monitoring and IoT Integration
Modern steel cooling towers can be equipped with sensors to monitor water temperature, flow rates, corrosion levels, and chemical dosing. IoT-enabled systems provide real-time data, enabling predictive maintenance and optimized performance. By detecting anomalies early, facilities can prevent downtime and maintain consistent cooling efficiency, reducing both operational costs and energy consumption.

Sustainability Efforts
Water conservation and environmental compliance are central to the design of contemporary cooling towers. Innovations include:

Zero-Liquid Discharge (ZLD) Integration:Minimizes water waste by recovering and recycling water within the system.

High-Efficiency Fans and Motors:Reduce energy consumption while maintaining airflow for heat transfer.

Advanced Drift Eliminators:Limit water loss and chemical emissions, contributing to eco-friendly operation.

High-Performance Alloys for Harsh Environments
In industries such as petrochemical, steel, or coastal facilities, water and air may contain corrosive elements. Using high-performance steel alloys or stainless steel variants increases resistance to chemical attack, pitting, and scaling. Fangnuo applies these materials strategically, balancing cost, durability, and maintenance requirements for optimal performance in challenging industrial environments.

Integration with Industrial Systems
Steel cooling towers are increasingly integrated with broader industrial automation systems. Advanced control systems manage fan speeds, water distribution, and treatment processes automatically, allowing towers to respond dynamically to changes in process heat loads. This integration improves operational efficiency, reduces energy use, and prolongs equipment life.

Through these innovations, industrial steel cooling towers are becoming more efficient, sustainable, and intelligent. Fangnuo Heat Transfer System (Jiangsu) Co., Ltd. continues to lead in engineering advanced steel cooling tower solutions that meet the evolving demands of modern industry, from large-scale power generation to high-capacity HVAC systems and chemical processing plants.

IX. Conclusion

Steel cooling towers play a pivotal role in modern industrial processes, providing reliable and efficient heat rejection for applications ranging from power generation and steel manufacturing to chemical processing and large-scale HVAC systems. Their design leverages the strength, durability, and versatility of steel, enabling towers to withstand high temperatures, chemical exposure, and heavy mechanical loads while maintaining long-term performance.

By understanding the working principles of industrial cooling towers, engineers and facility managers can optimize thermal efficiency, water usage, and energy consumption. Steel cooling towers, in particular, balance these factors effectively through thoughtful design, corrosion protection strategies, and structural robustness. With modular construction, advanced monitoring technologies, and high-performance materials, steel towers continue to evolve to meet the needs of increasingly complex and environmentally conscious industrial operations.

Fangnuo Heat Transfer System (Jiangsu) Co., Ltd. exemplifies expertise in this field. With over 20 years of experience in design, manufacturing, and system integration, Fangnuo delivers steel and industrial cooling towers tailored to client-specific requirements. Their solutions combine precision engineering, material optimization, and proactive maintenance guidance to ensure long-term reliability, cost-effectiveness, and compliance with environmental standards.

As industrial standards advance and sustainability becomes more critical, the role of steel cooling towers will continue to grow. Innovations in material science, IoT-enabled monitoring, and water-saving technologies promise to enhance the efficiency and longevity of these essential systems, securing their place as a cornerstone of industrial cooling solutions for years to come.
